10 FOOT MODEL S REFRIGERATED DRAFT TRAILER
-
SPECIFICATIONS
HEIGHT - 7’ 5” from ground WIDTH - 6’ 3” outside LENGTH - 10’ 5” (14’ 5” including hitch) WEIGHT - 3320 lbs. PAINT - DuPont 508A Centari TIRES - ST205/75R14 Radial (14”) BRAKES - Four wheel electric AXLES - 7,000 lbs. tandem Torflex assembly HITCH - 2 5/16” coupler, hitch jack, jack foot safety chain, break-a-way kit
-
CONSTRUCTION
All heavy gauge welded galannealed body panels, aluminum awnings, steel frame 30 amp 110V wiring complete, light in cooler area, fluorescent fixture with tubes above taps on each side, 50’ 10/3 lead in cable with 30 amp connector and 110V plug attached, all ICC road lights, 12V connector complete, aluminum treadplate cover on A-frame tongue with aluminum treadplate storage box for two CO2 tanks & electrical cable.
-

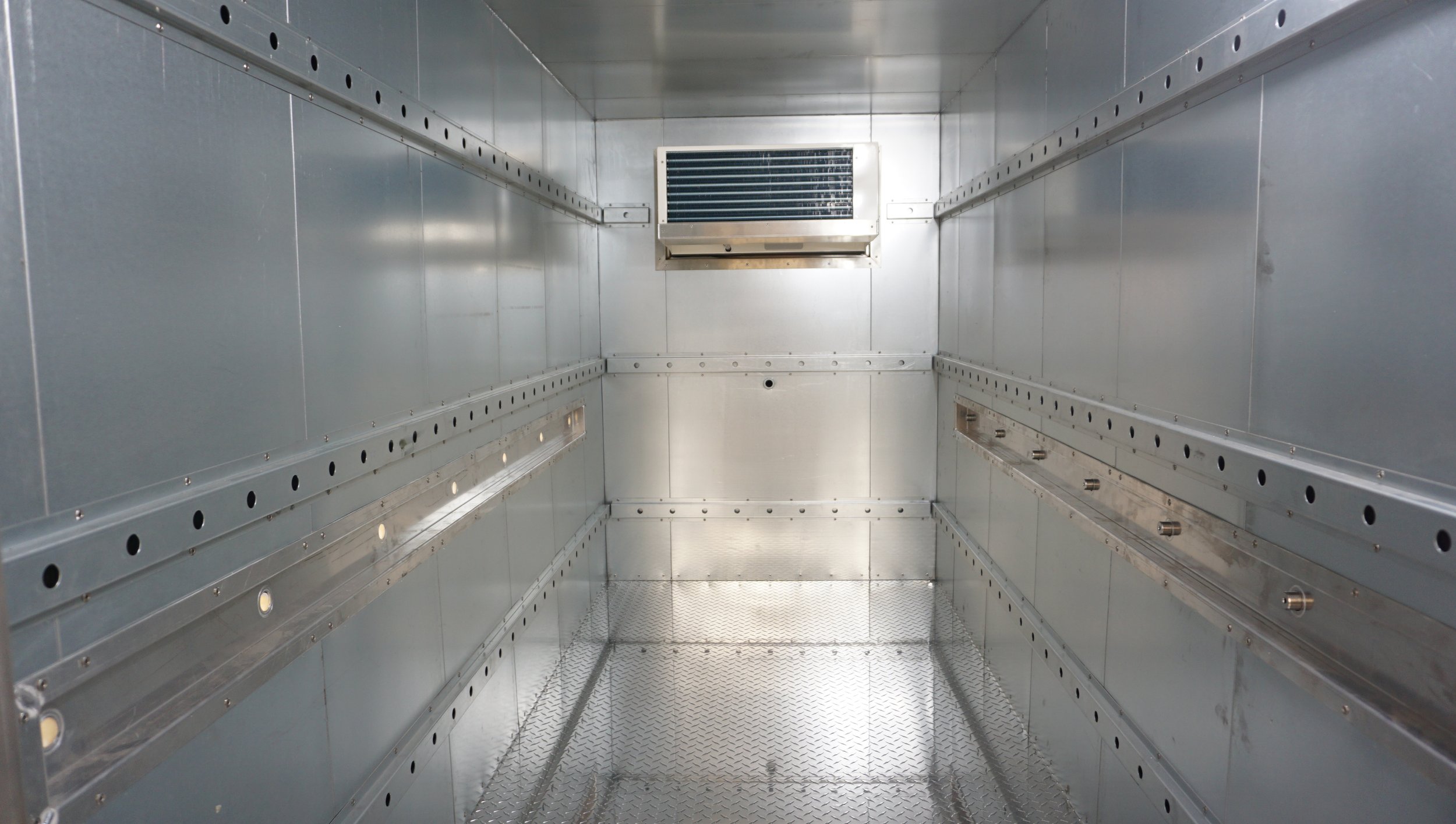

COOLER AREA
45” wide, 62” high, 116” long (inside), trailer and cooler area built as one unit; R16 URETHANE insulation, ALUMINUM treadplate floor in cooler area
-
REFRIGERATION
110V 1 h.p. GOVI unit complete
-
WARRANTY
60 day unlimited warranty on complete package. GOVI Refrigeration Units have a 90 day Parts & Labor warranty + 365 days (Parts Only) from the date of shipping for a total of 15 months. In addition, GOVI USA will pass through any applicable manufacturer warranty on components within the system.
-
COOLER CAPACITY
(12) 17” half barrels OR (15) 16” half barrels – on the floor
-
DISPENSING AREA
Bar height is 35”, height of faucet shank is 46”; FIVE SHANKS EACH SIDE; faucets and tapping equipment ARE NOT supplied, stainless steel drip pan and drain board for each side Canopy door/awning to cover serving area
-
ELECTRICAL
30 amp 110V wiring complete, light and switch for cooler area, 50’ 10/3 lead in cable with 30 amp connector and 110V plug attached, all I CC road lights, 12V connector complete
